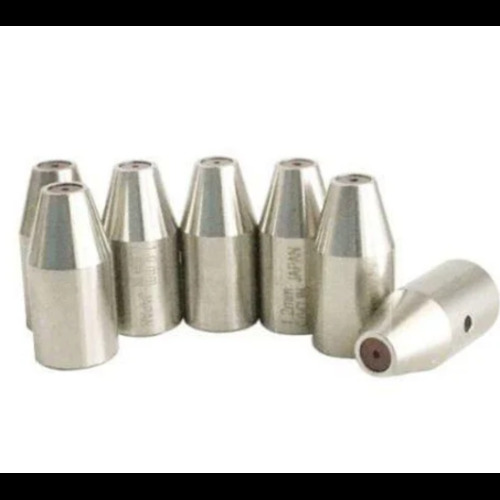

Edm Drill Guide

About Edm Drill Guide

An EDM (Electrical Discharge Machining) drill guide is a component used in EDM drilling machines to ensure the precise alignment and positioning of the drill electrode during the drilling process. EDM drilling, also known as hole drilling or sinker EDM, is a process used to create holes in hard metals or materials that are difficult to machine with conventional methods. The drill guide plays a key role in guiding the electrode to the correct location and ensuring that the hole is accurately formed.

Key Functions of an EDM Drill Guide:

1. Accurate Hole Positioning: The drill guide ensures that the electrode is precisely aligned with the workpiece at the correct drilling location, preventing misalignment and ensuring the hole is drilled in the right position.
2. Electrode Stability: The guide provides stability to the electrode, especially when drilling deep or small-diameter holes, which can otherwise be difficult to maintain without accurate guidance.
3. Tool Life and Performance: Proper guiding helps reduce the risk of electrode wear, bending, or breakage, enhancing tool life and improving the overall performance of the EDM process.

Components of an EDM Drill Guide:

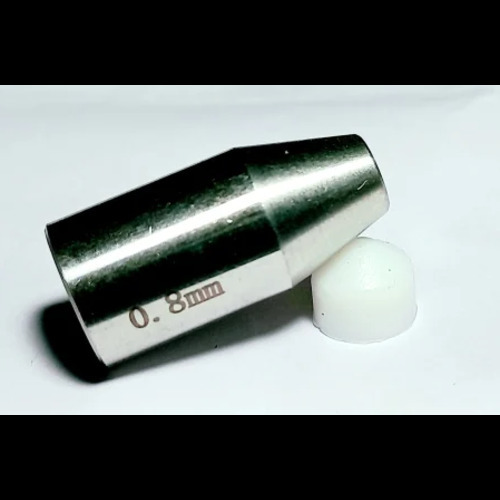

• Guide Sleeve or Bushing: This is the part of the guide that surrounds the electrode, keeping it aligned with the hole's axis. It often has a hole of the same diameter as the electrode to ensure accurate placement.
• Guide Pin: Some drill guides use a pin mechanism that ensures the electrode stays aligned with the workpiece during the drilling process.
• Clamp or Fixture: This secures the workpiece in place and holds the drill guide firmly during the machining process.

Types of EDM Drill Guides:

1. Fixed Drill Guides: These are stationary guides that hold the electrode in a fixed position during the drilling process. They are typically used for shallow holes or when high precision is needed in a fixed location.
2. Adjustable Drill Guides: These guides allow for movement and adjustment, enabling the operator to change the position or angle of the electrode during the drilling process. This type is more versatile and is useful when drilling at various angles or when multiple holes need to be drilled.
3. Automated Drill Guides: In modern EDM machines, drill guides may be part of an automated system that can adjust automatically, further increasing precision and efficiency.

Material and Construction:

• Tool Steel: Drill guides are often made of hardened tool steel to withstand the intense electrical discharges and the abrasive effects of machining.
• Ceramic or Carbide Inserts: For enhanced durability and wear resistance, some drill guides may incorporate ceramic or carbide inserts, especially when drilling hard materials.
• Precision Machining: EDM drill guides are typically precision-machined to ensure that they fit tightly around the electrode and maintain alignment under high-precision requirements.

High-Precision Guiding for EDM Drilling

Designed to maintain alignment and accuracy, the EDM Drill Guide facilitates electrode guidance during electrical discharge machining, ensuring hole placement with a precision tolerance of 0.01 mm. Its robust build and replaceable guide bush support consistent results and easy maintenance, making it an essential tool for professionals seeking meticulous work outcomes.


Versatile Mounting and Universal Compatibility

This drill guide is universally compatible with most EDM drilling machines. It can be flexibly mounted with either a tabletop setup or clamped arrangement, offering adaptability to various workstation environments. Custom sizing is available to suit unique project requirements, enhancing its usability for diverse workshop and industrial applications.
